      Contextual Fit

    Analysis & Design of Addition

In this Project, we are tasked to design an addition to the Notorious Smith House, designed by Architect Richard Meier in 1965. The main objective of this project is that the addition must show proof of that the existing systems and patterns throughout the house were thoroughly analyzed and then incorporated into the addition to respect the integrity of Richard Meier's original design.

Narrative

Smith.Housev1.avif

Renowned guitar artist Jhon Garcia recently purchased the Smith House, located on the Long Island shore in New York. A close friend of Santana and Lenny Kravitz, he envisions the home as a space for hosting intimate guitar practice sessions and collaborative songwriting.

To support this vision, Garcia has requested an addition to the existing structure that preserves the original architectural intent. An expanded family room and an extended outdoor deck will provide the necessary space for these creative and social gatherings.

In addition, he has requested a master suite that includes a master bedroom, master bath, and walk-in closets as needed, along with an exercise room located on a different floor from the bedroom to better meet his family’s needs.

Hierarchy: Family Room

Meta-Idea: Guitar Practice

Hierarchy: Family Room
Meta-Idea: Guitar Practice

Sorting of Spaces

Public:
Family Room
Deck
Exercise Room
Private:
Master Bedroom
Master Bathroom
Group:
Family Room
Deck
Loud:
Family Room
Deck
Exercise Room
Quiet:
Master Bedroom
Master Bathroom
Individual:
Master Bedroom
Master Bathroom
Exercise Room

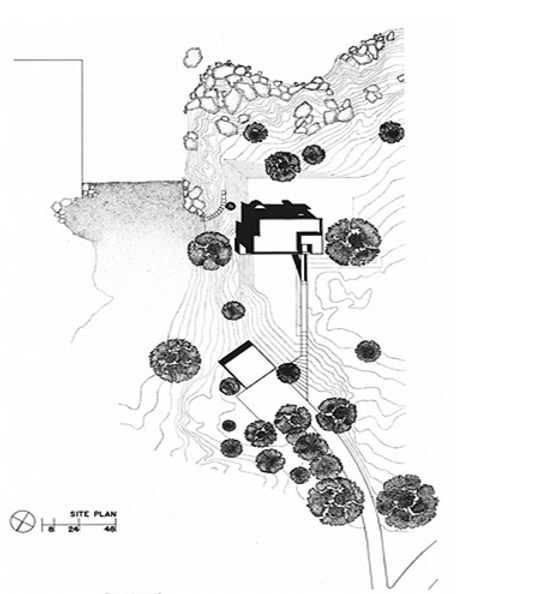

Contextual Analysis
Existing Floor Plans
Existing Floor Plans-2.jpg

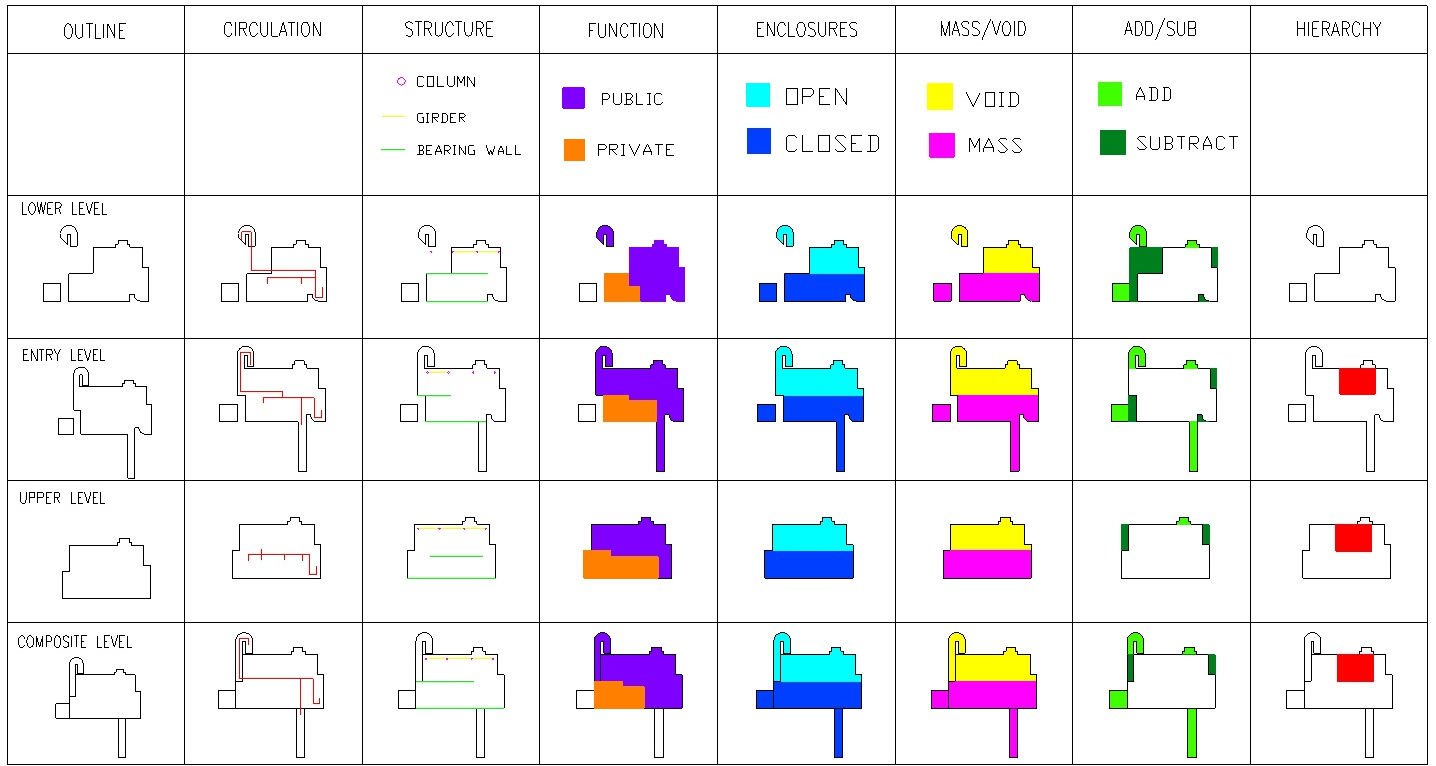

Existing Building System & Patterns
Final Floor Plans
Lower Level
LOWER LEVEL.jpg
Entry Level
Entry Level.jpg
Upper Level
Upper Level.jpg
New Floor Plan Analysis
East Elevation
West Elevation
North Elevation
South Elevation
Sections
Preliminary Designs
Preliminary Design 1
Preliminary Design 1.jpg
Preliminary Design 2
Preliminary Design 2.jpg
Preliminary Design 3
Preliminary Design 3.jpg

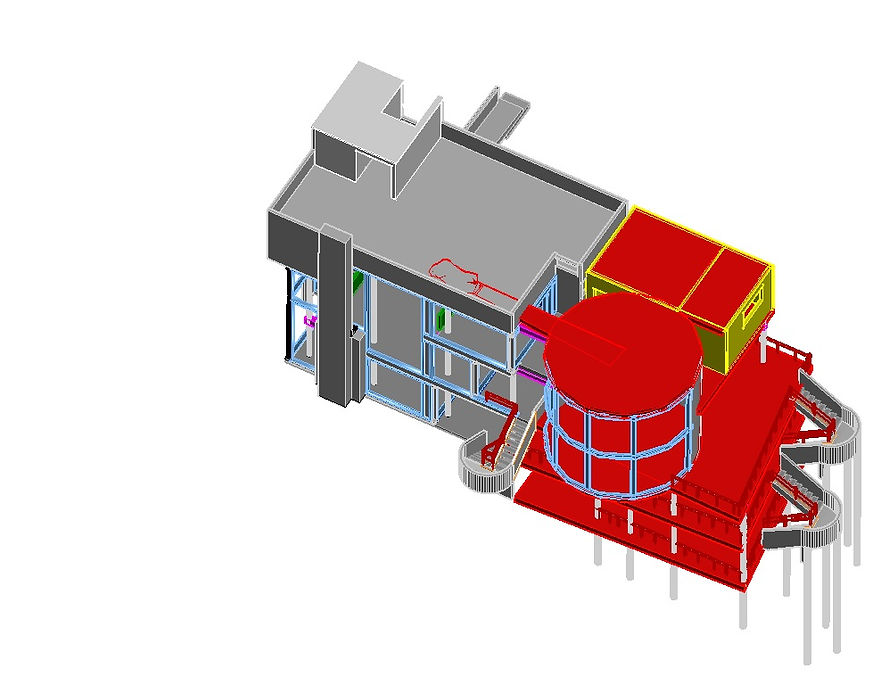

Conceptual Meta-Idea
Existing Systems brought into the new addition:
