Span Prototype
Name: Forth Bridge
Type: Cantilever Bridge
Location: South Queensferry, United Kingdom
Name: Millau Bridge, France
Type: Cable Stay
Location: France
Sydney Harbor Bridge
Type: Arch Stay
Location: Australia
Movement Analogies
We had to find three household items that have two or more hinges in a mechanical sense and choose three of the items that we want to use for the bridge opening. The three items that I want to use are eyelash curler, umbrellas and a wine bottle opener. We then took each item and 3-D modeled them and diagramed the functions of each item for a better understanding of their mechanics before incorporating them into our prototypes
Wine Bottle Opener
Tin Snips
Locking Pliers
Preliminary 3x3 Prototype Table
Taking my three Conceptual spans and three household items and combining them into a 3x3 diagram containing 9 total prototypes.
Selected Prototype
VIEWS
DETAILING VIEWS
North West View
North East View
South West View
South East View
Rendering

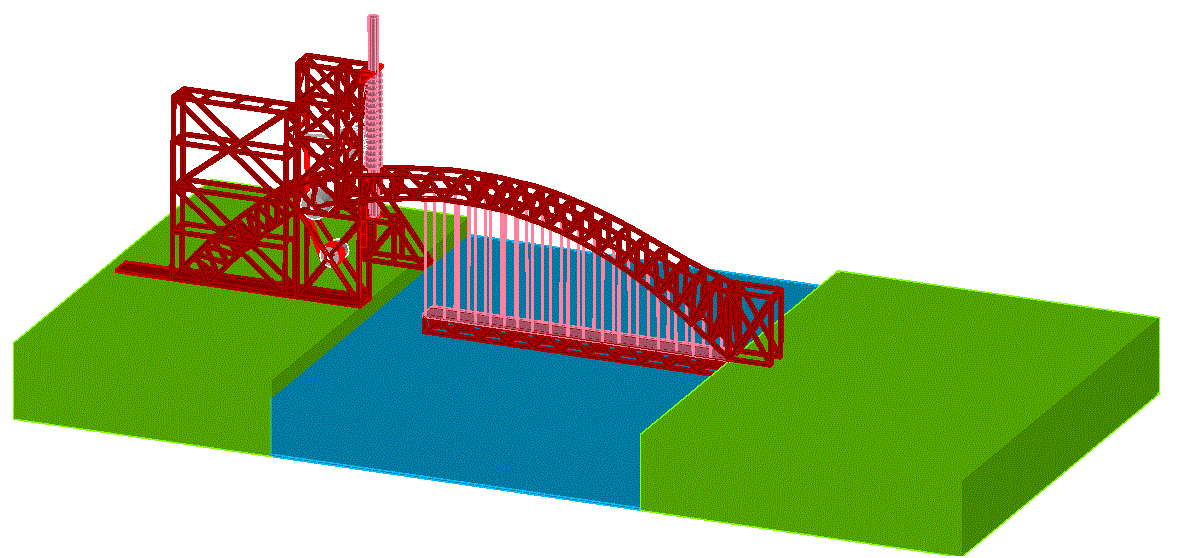

Final Design
